Product Description
Automann 100.4311.10 - Brake Shoe Hardware Kit for Eaton 16.5in Brakes
The Automann 100.4311.10 Brake Kit includes all essential hardware for servicing Eaton 16.5" x 7" unlined brake shoes (FMSI 4311). Designed for use with shoes 142.431780 and 142.431180, this Fleet Standard grade kit ensures reliable installation and performance on a wide range of commercial axles.
Key Features
- Complete hardware set for Eaton 16.5" x 7" brake shoes
- Fleet Standard grade kit for general-duty use
- Compatible with unlined shoes 142.431780 and 142.431180
- OEM cross-reference: E1887AHD, R507002
- Compact, parcel-friendly packaging
Specifications
- Brand: Automann
- Part Number: 100.4311.10
- UPC: 889626000225
- Application: Eaton 16.5" x 7" Brakes
- Drum Diameter: 16.5 in
- Shoe Width: 6"–7"
- FMSI Reference: 4311
- Shipping Weight: 2.6 lbs
- Shipping Dimensions: 6.625 x 6.2 x 1.25 in

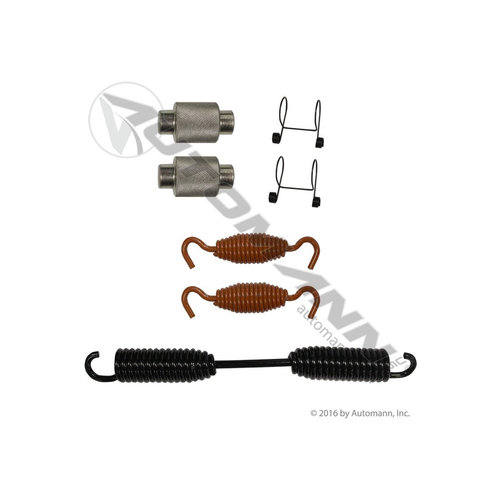

Kit Contents
- (2) Roller Pins – 101.0251.99
- (2) Rollers – 101.0251K
- (2) Return Springs – 104.04171
- (1) Primary Spring – 104.10261HD
Applications
Fits Eaton 16.5" x 7" brake systems used on drive and trailer axles with unlined shoes 142.431780 and 142.431180. Used in standard 501/541 Series Single Anchor Pin configurations.
Cross References
- Euclid: E1887AHD, E1887ASHD, E1887HD, E4311HD
- Meritor: R507002, R507002BK, R507002BULK
- Haldex: CQ67319
- Spicer: 241SS, 24A
- Fruehauf: MBCBK0030
- Eaton: 52243
Additional Info
- Part of boxed kit: 100.4311.10BX
- Commonly used in Hendrickson and Eaton axle applications
