Product Description
Automann 125.281102.02 - RH Camshaft for Hendrickson INTRAAX
The Automann 125.281102.02 is a right-hand camshaft engineered for Hendrickson INTRAAX trailer axles with 16.5" drum brakes. Designed with a 1.125" extended life head and 1.5"-28 spline shaft, this camshaft delivers reliable braking performance in both exposed and tube-style mounting configurations.
Key Features
- Right-hand camshaft for Hendrickson INTRAAX axle systems
- 1.125" HXS extended life cam head
- 1.500"-28 spline design
- Lightweight yet durable fleet-standard construction
- Compatible with exposed cam and cam tube repair kits

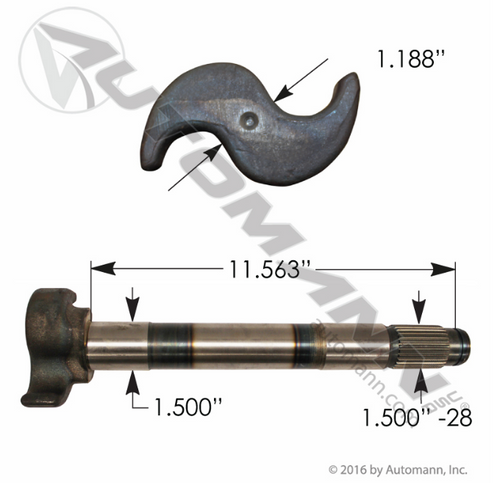

Specifications
- Brand: Automann
- Part Number: 125.281102.02
- UPC: 889626013621
- Application: Hendrickson INTRAAX trailer axles
- Head Style: 6
- Head Type: 1.125" Extended Life (Hendrickson HXS)
- Length (L): 11.031"
- Length A: 2.313"
- Length B: 8.688"
- Splines: 1.500"-28
- Journal Diameter A: 1.500"
- Journal Diameter B: 1.500"
- Weight: 7.4 lbs
- Package Dimensions: 15.375 x 4.25 x 2.75 inches
Compatible Repair Kits
- 110.2220 – Exposed cam style repair kit
- 110.2505 – Cam tube style repair kit
Applications
- Hendrickson INTRAAX trailer axles with 16.5" x 7" brakes
- Compatible with FMSI 4515E and 4707
- Fits both cam tube and exposed camshaft configurations
Cross References
- Euclid: E11434, E11867
- Meritor: R607326
- Hendrickson: S233471R, S246361R
Additional Info
- Arrival Date: June 2011
- Parcel friendly for economical shipping
- Backed by Automann’s limited warranty
- Matching LH Camshaft: 125.281102.01
