Product Description

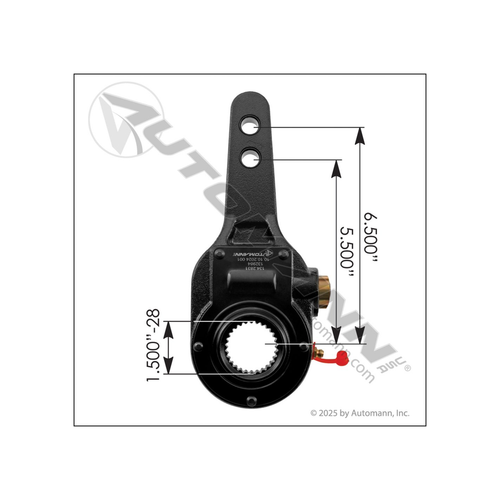

Automann 133.1031 - Haldex Type Automatic Slack Adjuster 5.5–6.5in (Economy)
The Automann 133.1031 Slack Adjuster is a cost-effective, automatic Haldex-style slack adjuster designed for heavy-duty drive axle applications. With a 1.5"-10 spline and adjustable arm from 5.5" to 6.5", it delivers reliable brake performance and includes a bracket kit for secure installation.
Key Features
- Haldex-style automatic slack adjuster
- Economy-grade (Fleet Standard) construction
- Adjustable arm length: 5.5" and 6.5"
- 1.5" diameter, 10 spline input
- 34° arm angle
- Includes bracket kit for easy installation
Specifications
- Brand: Automann
- Part Number: 133.1031
- UPC: 889626013652
- Spline Size: 1.5" - 10 spline
- Arm Length: 5.5" and 6.5"
- Body Angle: 34°
- Weight: 7.1 lbs
- Package Dimensions: 11.187 × 5.875 × 2.437 inches
- Product Level: Fleet Standard
Kit Contents
- 1 Automatic Slack Adjuster (133.1031)
- 1 Bracket Kit (135.H0553)
- Mounting hardware included
Applications
- Meritor and Eaton drive axles with 16.5" x 6", 16.5" x 7", or 18" x 7" brake systems
- FMSI 4708, 4709, 4527, 4471B, etc.
Cross References
- Euclid: E6924B
- Meritor: R806022, R806022A
- Haldex: 40010121, 40010143
Additional Info
- Arrival Date: September 2011
- Backed by Automann’s limited warranty
- Use 135.1031 for Fleet Premium version
