Meritor Brake Shoe Kit (MNK4709E2H20V)

Meritor

MSRP: $153.38
$90.25
(You save $63.13 )

SKU: MNK4709E2H20VMER

Adding to cart… The item has been added
Fast and secure, low cost shipping.

Product Description

Meritor MNK4709E2H20V Brake Shoe Kit | Q Plus 16.5x7in | 20K Value Grade

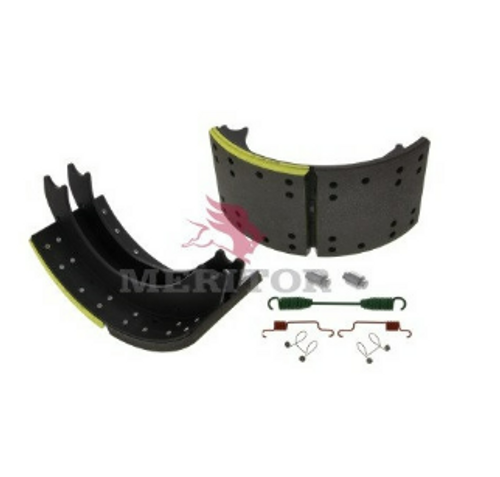

Meritor MNK4709E2H20V Brake Shoe Kit

The Meritor MNK4709E2H20V Brake Shoe Kit is a value-grade, lined brake kit for Meritor Q Plus 16.5" x 7" S-cam brake systems rated up to 20,000 lbs per axle. This kit includes two brake shoes and all necessary hardware to service one wheel-end, offering reliable performance for standard-duty fleet operations.

Key Features
  • Designed for Meritor Q Plus 4709 brake systems
  • Includes two 16.5" x 7" lined brake shoes
  • Value-grade 20K friction for general duty performance
  • Hardware kit included for easy installation
  • Meets FMVSS and OEM fit standards
Specifications
  • Brand: Meritor
  • Part Number: MNK4709E2H20V
  • Brake Size: 16.5" x 7"
  • FMSI Reference: 4709
  • Axle Rating: 20,000 lbs
  • Friction Grade: Value (20V)
  • Shoe Style: Q Plus, double anchor pin
  • Weight: ~25–30 lbs (estimated)
  • Estimated Shipping Dimensions: 17 x 10 x 5.5 in
Kit Contents
  • (2) Lined Brake Shoes – FMSI 4709 (16.5" x 7")
  • (1) Complete Hardware Set – Springs, Hold-down Pins, Retainers
Applications
  • Heavy-duty trailers and drive axles using Q Plus 4709 brake systems
  • Ideal for general line haul and standard fleet operations
  • Use on axles rated up to 20,000 lbs
Cross References
  • Meritor: MK4709E2, MNK4709E2H20V
  • Euclid: E4709E20, E4709ESHD
  • Other Equivalents: 4709Q20V, H4709E20V
Additional Info

This kit uses Meritor’s value-grade friction for balanced performance and cost-efficiency. For fleets operating in severe service conditions, consider Meritor "20S" kits with higher fade resistance. Replace in axle sets and inspect drums for best results.
