Product Description

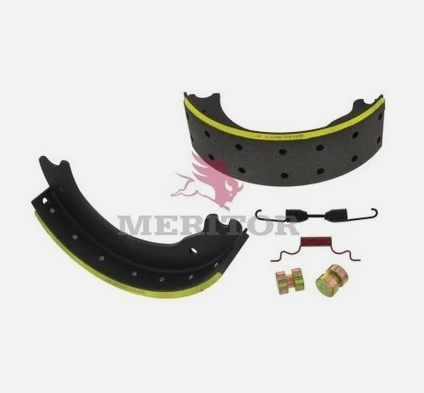

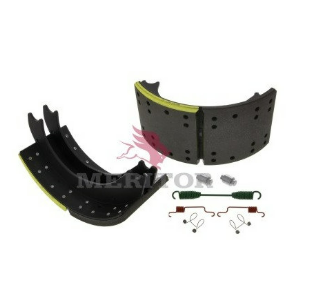

Meritor MNK4709EH20V Brake Shoe Kit
The Meritor MNK4709EH20V Brake Shoe Kit is engineered for Q Plus 16.5" x 7" drum brake systems with a 20,000 lb axle rating. This complete kit includes two lined brake shoes and a premium hardware set, offering OE-quality fit and braking performance for heavy-duty trucks and trailers operating under demanding conditions.
Key Features
- Q Plus double anchor pin design for Meritor 4709 systems
- Includes two fully lined brake shoes (one wheel-end)
- Premium friction material for 20K GAWR braking
- Hardware included for fast, complete installation
- Built to OEM specifications for safety and reliability
Specifications
- Brand: Meritor
- Part Number: MNK4709EH20V
- Brake Size: 16.5" x 7"
- Application: Q Plus (FMSI 4709) 20K Axle
- Shoe Type: Double Anchor Pin
- Includes Lined Shoes: Yes
- Friction Rating: 20,000 lb axle
- Shipping Weight: Approx. 26–30 lbs
- Estimated Shipping Dimensions: 17 x 10 x 5.5 in
Kit Contents
- (2) Lined Brake Shoes – 16.5" x 7"
- (1) Hardware Kit – Return Springs, Hold-Down Pins, Retainers
Applications
- Meritor Q Plus trailer and drive axle brake systems
- 16.5 x 7" S-cam brake setups on 20K GAWR axles
- Heavy-duty trucks and semi-trailers
Cross References
- Meritor: MK4709, MNK4709, MK4709Q, 4715EH20V
- Euclid: E4709SHD
- Other Equivalent: H4709QK20, SB4709V
Additional Info
Recommended for replacement in axle-matched sets. Always clean and inspect drum surfaces during brake service. Use with properly rated camshaft and slack adjusters to ensure even shoe actuation and wear.
