Product Description

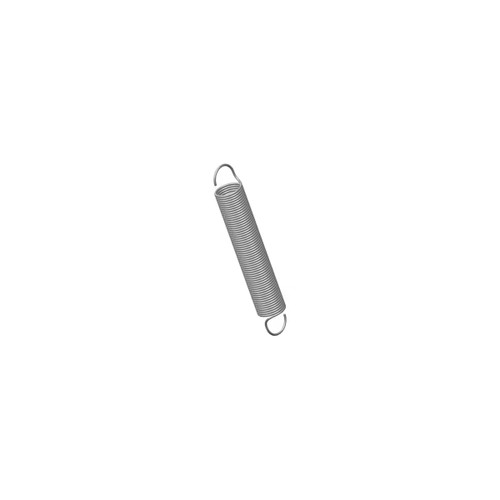

Century Spring Corp 103CS Extension Spring | High Carbon Steel
The Century Spring Corp 103CS is a high carbon steel extension spring with machine hook ends, designed for general-purpose mechanical applications requiring consistent load support. This spring delivers a 1.3 lb/in rate with a maximum load capacity of 20 lb and 3 lb initial tension.
Key Features
- High carbon steel construction for durability and corrosion resistance
- Machine hook ends for secure attachment and alignment
- 1.3 lb/in spring rate for controlled load distribution
- 3 lb initial tension with 20 lb maximum load capacity
- 0.091″ wire diameter, 1.125″ OD, 7.50″ free length
Specifications
| Brand | Century Spring Corp |
| Part Number | 103CS |
| Dimensions (L × W × H) | 1 × 1 × 1 in |
| UPC | 723555674853 |
| Material | High Carbon Steel |
| Wire Diameter | 0.091 in |
| Outer Diameter | 1.125 in |
| Free Length | 7.50 in |
| Spring Rate | 1.3 lb/in |
| Initial Tension | 3 lb |
| Max Load | 20 lb |
